Description

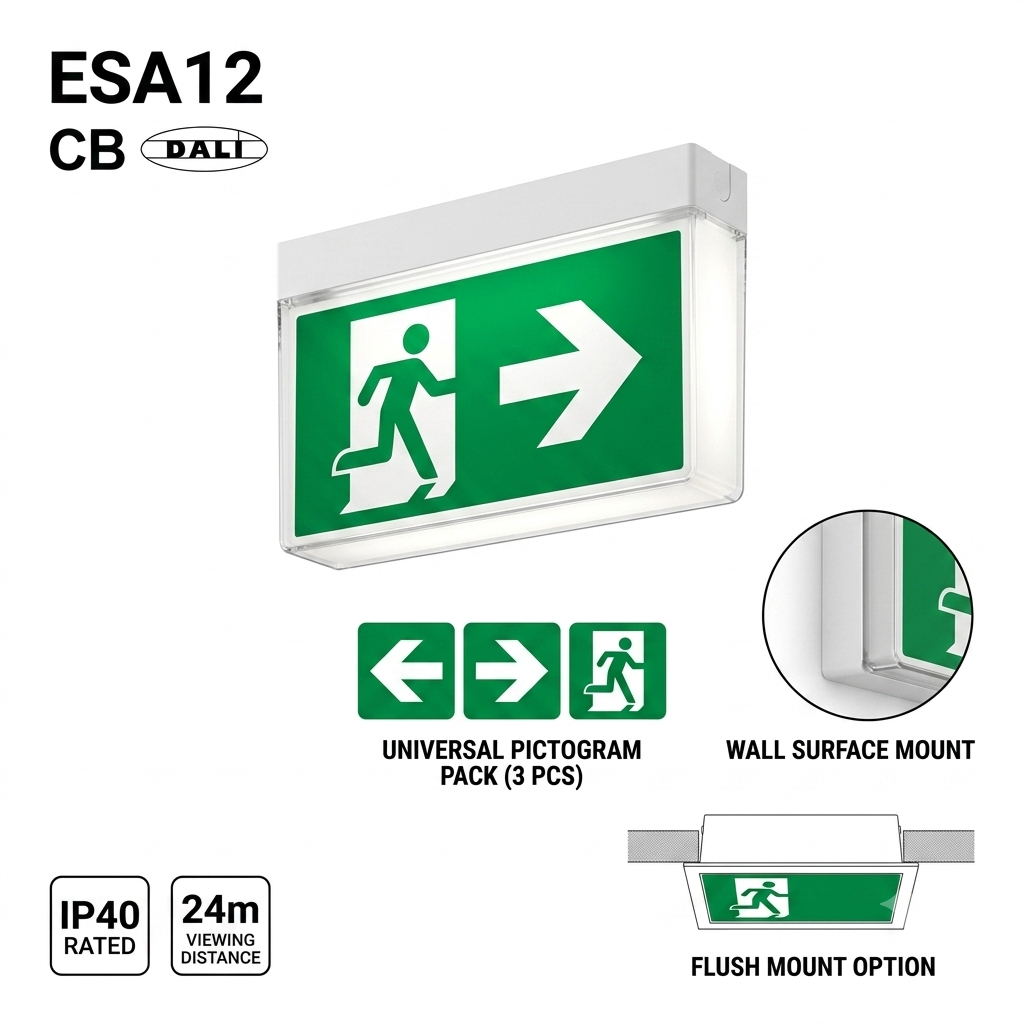

ESA12 Series LED Emergency Exit Sign (24m Viewing Distance)
The ESA12 Series LED Emergency Exit Sign combines a compact, decorative aesthetic with industrial-grade reliability. Designed for versatile architectural integration, this self-contained emergency luminaire offers energy-efficient operation and a powerful 24-meter viewing distance to ensure clear directional guidance during critical evacuations.
Perfect for modern commercial offices, retail spaces, hotels, schools, and public buildings.
Key Features & Specifications
-
All-in-One Configuration: Supplied with a universal 3-piece replaceable pictogram pack (Arrow Left, Arrow Right, and Running Man without arrow) for flexible setup on-site.
-
Flexible Mounting Options: True universal installation capability supporting both clean Wall Surface Mounting and seamless Wall Flush Mounting arrangements.
-
Smart Monitoring Options: Available with advanced manual testing, automated AUTO Test, or an addressable DALI Interface for effortless digital system monitoring via local networks or the internet.
-
High Fire Safety Standards: The durable ABS luminaire housing is rigorously tested and compliant with the glow wire test at $850^\circ\text{C}$.
-
Long-Life Backed Battery: Features a reliable 3-hour emergency discharge duration utilizing optimized Ni-Cd or Ni-MH battery configurations.
-
Certified Quality: Certified by TUV SUD (Singapore) with a official CB Certificate, ensuring global safety and quality compliance.
Technical Specifications
| Parameter | Specification |
| Model Series |
ESA12 Series |
| Viewing Distance |
24 Meters |
| Power Supply |
220-240VAC 50/60Hz |
| Power Consumption |
Max. 3.5W (Highly Energy Efficient) |
| Light Source |
Premium SMD 2835 LEDs, CCT 6000K, $CRI > 70$
|
| Luminance (White Area) |
Normal: $200\text{cd/m}^2$ | High Luminance Option: $$500\text{cd/m}^$
|
| Emergency Runtime |
3 Hours |
| Recharge Time |
24 Hours |
| Ingress Protection |
IP40 Rated |
| Insulation & Materials |
Class II Insulation, ABS Housing, RoHS Compliant |
Ordering & Model Configurations
Customize your emergency lighting system to meet localized building codes and network infrastructures:
-
ESA12/3H/MT/MH: 3-Hour runtime, Manual Test system, 3.6V 1000mAh Ni-Mh battery.
-
ESA12/3H/AT/MH: 3-Hour runtime, Automated AUTO Test configuration, 3.6V 1000mAh Ni-Mh battery.
-
ESA12/3H/DA: 3-Hour runtime, Addressable DALI Interface system, high-capacity 3.6V 2100mAh Ni-Mh battery.
Operation Note: Highly adaptable engineering allows simple switching between Maintained and Non-Maintained operational modes directly on the luminaire.
