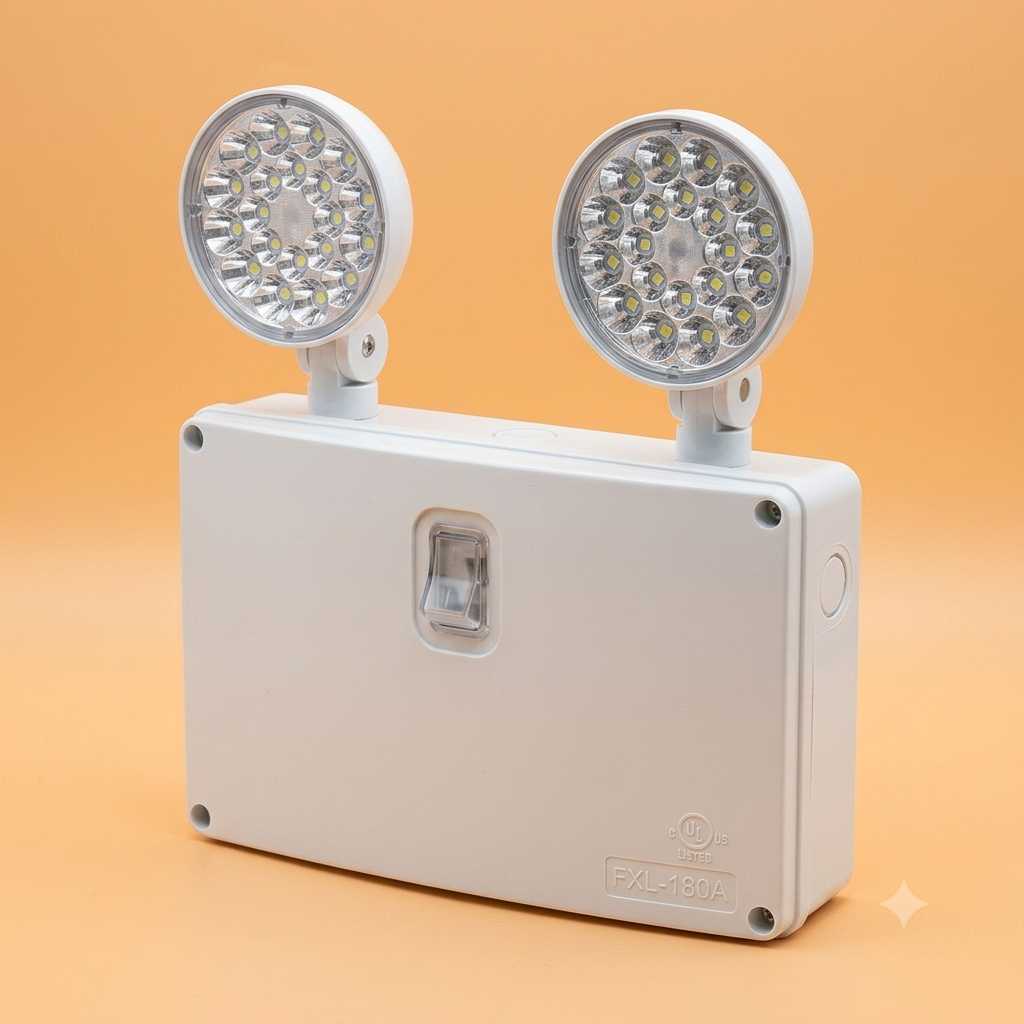

FXL-180A Waterproof & Wet Location LED Emergency Light (1000lm)

Engineered for extreme reliability, the FXL-180A Series Waterproof Emergency Light is specifically designed to perform in challenging environments. Featuring a robust, flame-retardant polycarbonate housing, this wet-location rated fixture provides powerful, code-compliant emergency illumination when you need it most.

Perfect for industrial washdown areas, outdoor corridors, marine environments, and commercial cold-storage facilities.

Key Features & Specifications

  • Built for Wet & Demanding Locations: Constructed from high-impact polycarbonate material with a waterproof seal, making it completely suitable for wet environments.

  • High-Intensity Illumination: Delivers a powerful 1000-lumen output driven by high-efficiency SMD2385 0.5W LEDs ($3.8\text{W} \times 2\text{pcs}$ lamp heads).

  • Fully Adjustable Optics: Features fully rotational lamp heads to allow precision targeting of egress pathways.

  • Advanced LiFePO4 Battery Technology: Equipped with a high-temperature, maintenance-free Lithium Iron Phosphate ($\text{LiFePO}_4$) battery offering an extended operational lifespan.

  • Industry Compliance: UL Listed and engineered to meet or exceed all rigorous safety requirements of NFPA 70 and NFPA 101 Life Safety Code.

  • Intelligent Circuitry: Built-in solid-state transfer circuit, brownout circuit, battery low-voltage protection, integrated test switch, and charge indicator.

Technical Specifications

Parameter Specification
Model

FXL-180A Series
Light Output

1000 Lumens
Lamp Heads

$2 \times 3.8\text{W}$ SMD2385 LEDs
Voltage Input

220~240V 50/60Hz (Dual voltage input optional)
Emergency Runtime

Options for >1.5 Hours (90 mins) or >3 Hours (180 mins)
Recharge Time

24 Hours
Housing Material

Flame-Retardant Polycarbonate
Dimensions

$10\text{-}1/4″ \text{ Width} \times 11\text{-}1/2″ \text{ Height} \times 2\text{-}3/4″ \text{ Depth}$

Configurations & Available Options

Tailor the FXL-180A to your project’s specific architectural and environmental demands:

  • Housing Colors: Available in clean White (-WH) or industrial Black (-BK).

  • Cold Location Version (-CL): Includes an integrated internal heater pad, expanding the operational temperature range down to $-25^\circ\text{C}$ to $50^\circ\text{C}$—ideal for freezers and freezing climates.

  • Self-Testing / Diagnostics (-CT): Optional automated self-testing feature to simplify routine maintenance and code compliance checks.

  • Remote Capability (-RC): Optional 6V 3W remote capability (or 1.5W max for constant output remote heads) to power secondary external emergency fixtures.

Mounting Note: Features a universal J-Box mounting pattern on the back plate, making it highly adaptable for straightforward wall mount installations.
