Description

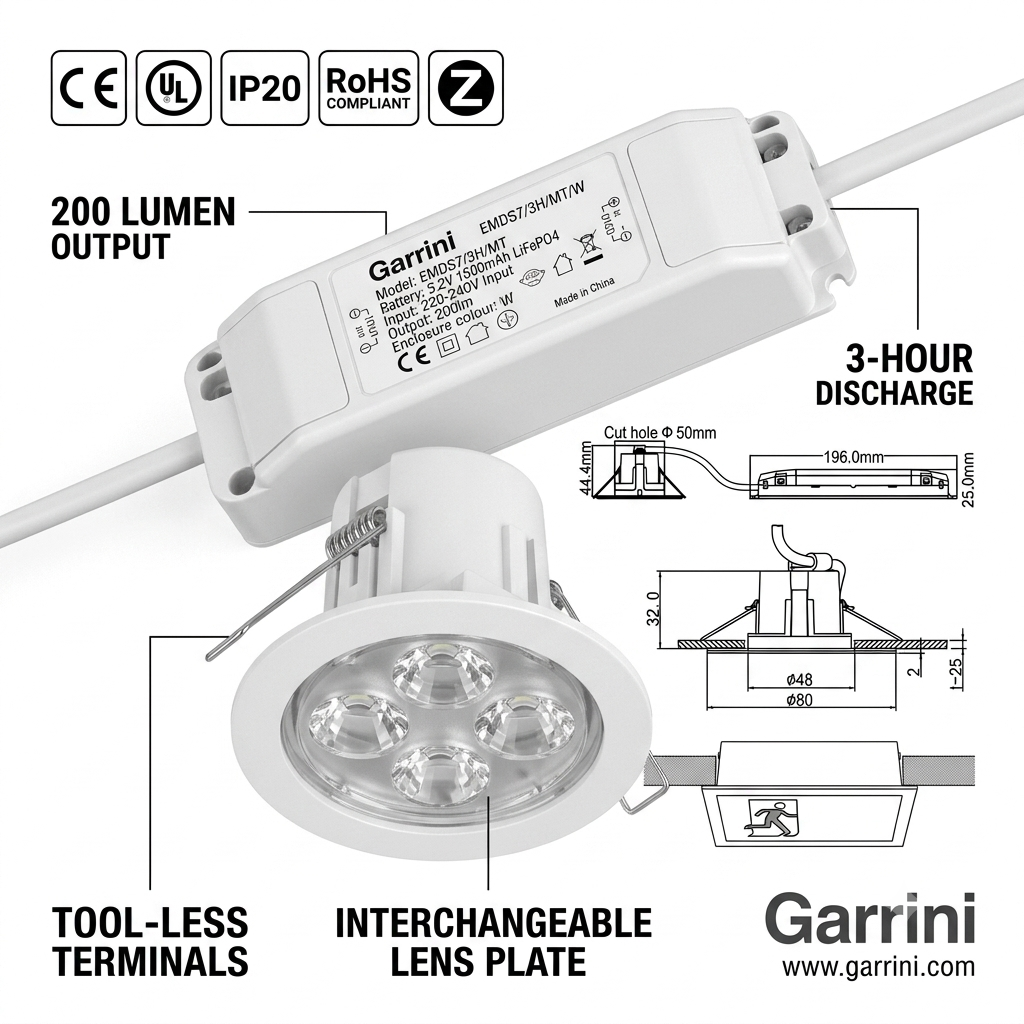

Garrini EMDS7 Series Circular LED Emergency Downlight
The Garrini EMDS7 Series is a high-performance, recessed LED emergency downlight engineered for subtle architectural integration and dependable life safety illumination. Operating in Non-Maintained mode, this luminaire remains dormant during standard operations and instantly activates during a power failure, delivering a potent 200-lumen output for a full 3-hour emergency duration.
Featuring a dual-lens system and tool-less installation parameters, it is the ideal choice for modern commercial offices, corridors, retail spaces, and hospitality environments.
Key Product Advantages
-
Interchangeable Lens Plates Included: Comes equipped with both a Round Wide Lens engineered for expansive open-area coverage, and an Oval Narrow Lens optimized specifically for long corridor pathways.
-
Premium LiFePO4 Battery Pack: Utilizes a long-life, maintenance-free Lithium Iron Phosphate ($3.2\text{V } 1500\text{mAh}$) battery system equipped with intelligent overcharge and deep discharge protection.
-
Rapid, Tool-Less Installation: Designed to minimize labor costs with a tool-less terminal block for incoming wiring and a quick-connect battery system.
-
Robust Thermal Management: Features an integrated die-casting heat sink alongside a durable polycarbonate $\Phi80\text{mm}$ trim ring.
-
Rigorous Fire Safety Compliance: The battery enclosure passes a strict $750^\circ\text{C}$ glow wire safety test, ensuring superior fire-retardant properties.
-
Color Customization: Available in two versatile trim finishes to match your ceiling design: White (W) or Black (B).
Technical Specifications
| Parameter | Specification |
| Model |
EMDS7/3H/MT/Z (Z = W for White, B for Black) |
| Operation Mode |
Non-Maintained (Activates only during power loss) |
| Input Voltage |
220–240Vac, 50Hz |
| Power Consumption |
Max. 3.5 Watts (Highly Energy Efficient) |
| Emergency Lumen Output |
200 Lumens |
| Emergency Discharge |
3 Hours |
| Recharge Period |
24 Hours |
| Ingress Protection |
IP20 (Indoor applications) |
| Temperature Rating |
$5^\circ\text{C}$ to $45^\circ\text{C}$
|
| Certifications |
CE, UL Components, RoHS Compliant |
| Warranty |
5-Year Warranty on the fixture |

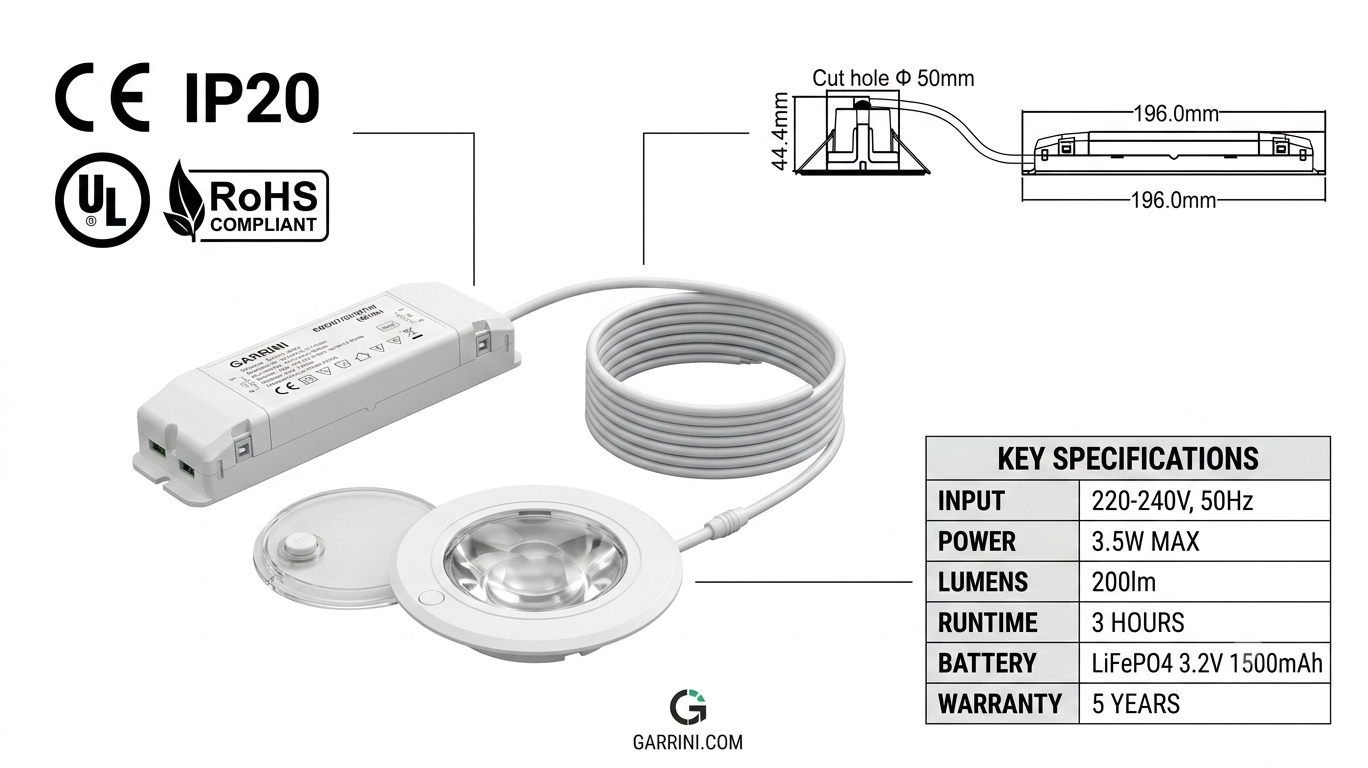

Installation Dimensions
-
Ceiling Trim Diameter: $\Phi80.0\text{mm}$
-
Required Ceiling Cut-out: $\Phi50\text{mm}$
-
Downlight Head Depth: $44.4\text{mm}$
-
Remote Driver/Battery Box: $196.0\text{mm} \times 33.4\text{mm} \times 25.0\text{mm}$
-
Minimum Ceiling Void Clearance: $110\text{mm}$ gap required from drywall to structural ceiling
-
Ceiling Thickness Adaptability: Fits ceiling boards ranging from $1\text{mm}$ to $25\text{mm}$ thick.
